About this item
- Application: This Wiring harness is designed for fog lights. The socket connector is compatible with 9005 9006 9012 9140 9145 9150 9155 HB3 H10 Fog light bulbs. The wiring harness kit can be connected to the light source within 180W. If your power supply is 24V, please replace the original 12 V relay with a 24V relay.
- 5 Pin Rocker Switch: Nilight 5 pin on-off rocker switch with SPST design (single pole single Throw), simple installation, freely turn on or off the light. Built-in two premium LEDs Emits soft light to illuminate the patterns, easy for you to find the switch in the dark.

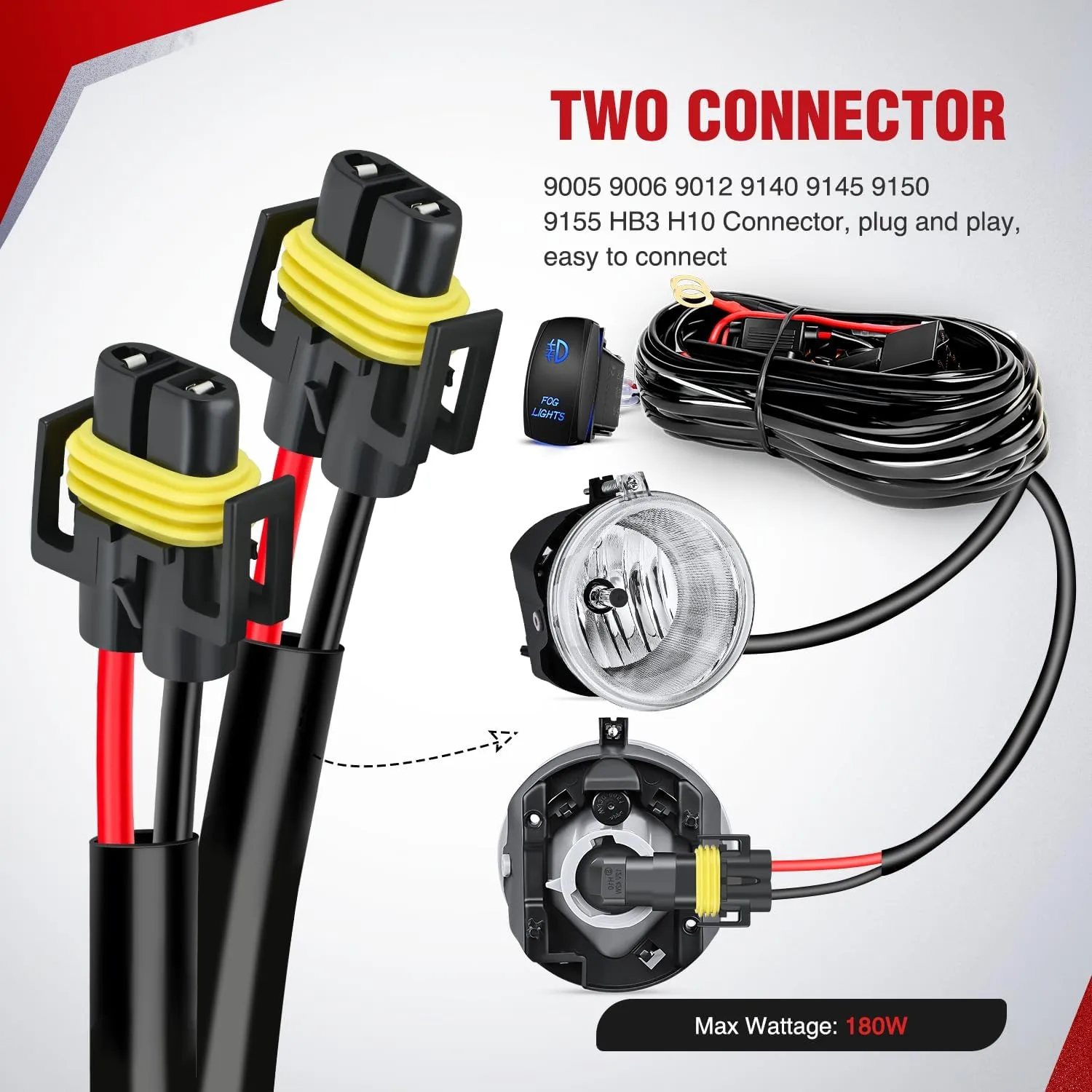

- Two Leads Available: 7.2 feet extendable wiring harness, two sets of light output connectors for dual light fixtures less than 180W.
- Circuit protection: Power relay for safety protection and conversion circuit. Blade fuse protects the circuit when over-current or short circuit occurs. Its load capacity is up to 180W and comes with two extra fuses.

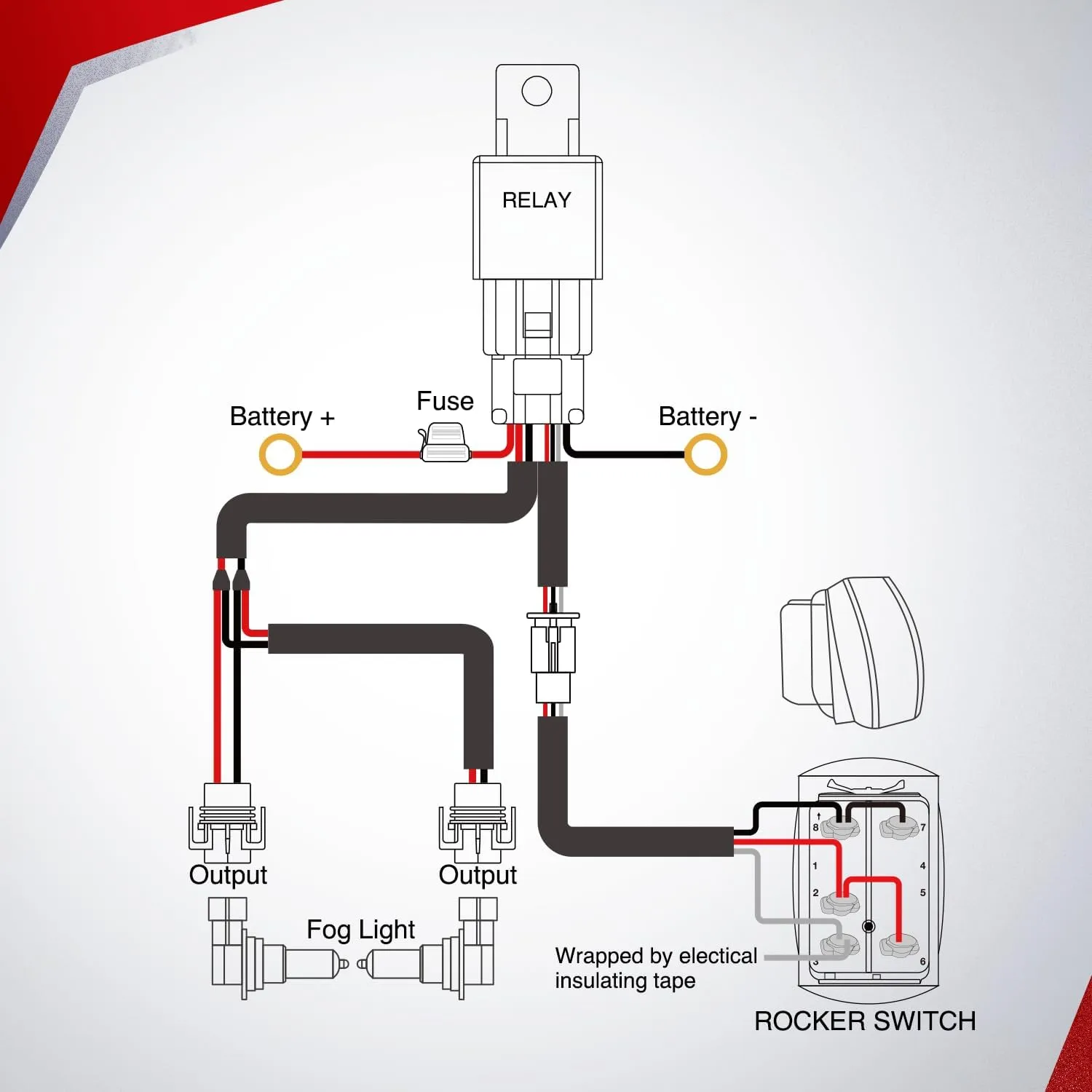

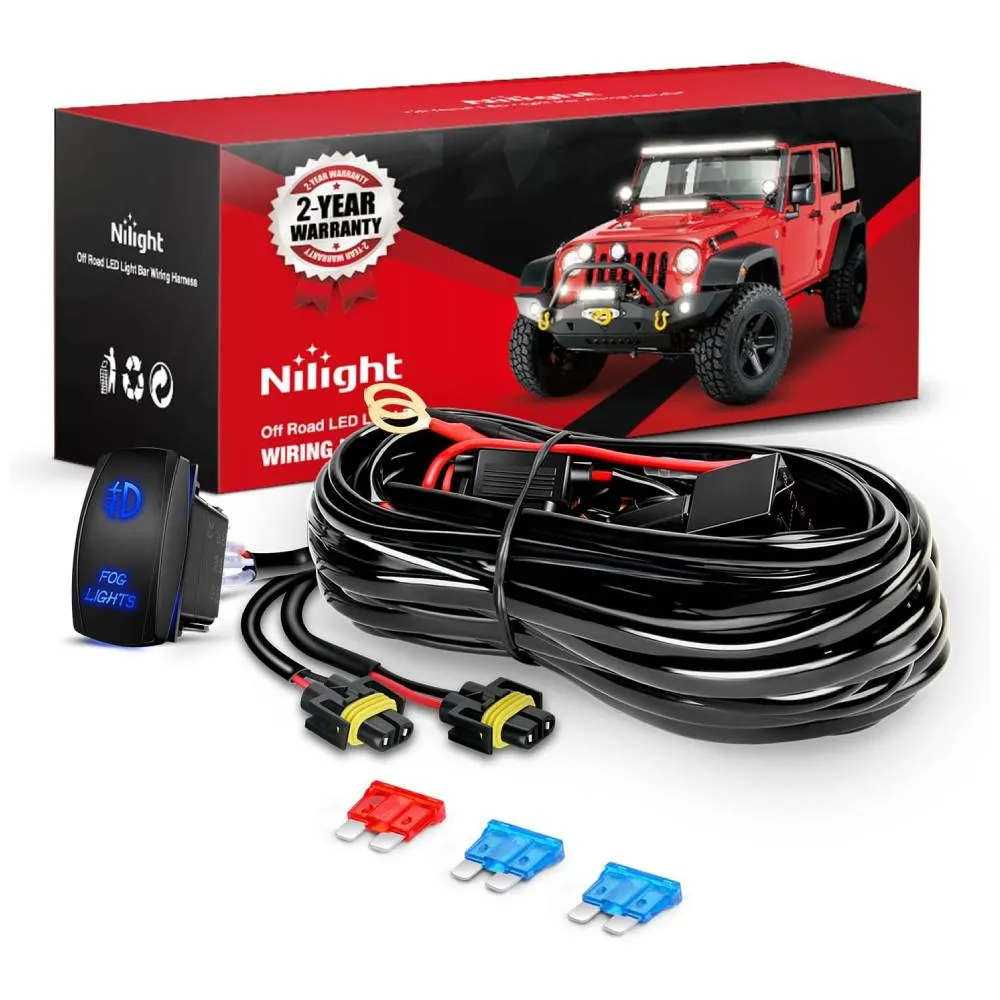

- Package includes: 1 x fog light wiring harness kit and extra blade fuses. A wiring diagram. 2 Year Warranty by Nilight.

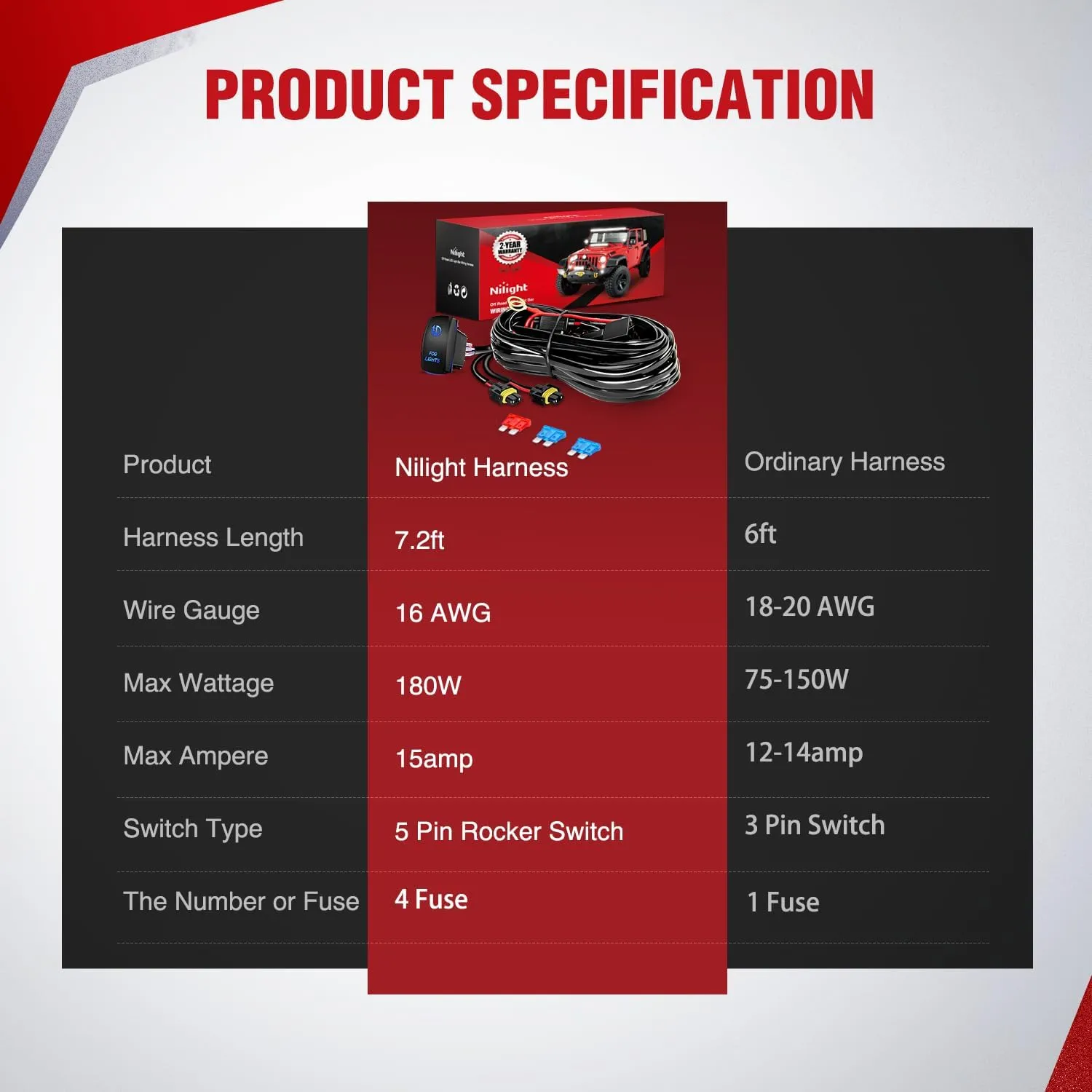

Specification
Working Voltage: 12V DC; Max Working Current: 15A; Max Wattage: 180W; Wire Gauge: 16 AWG;
Automotive relay, inline blade fuse with three extra fuses;
Switch: 5 Pin Rocker Switch;
Note: Please finish the installation by professionals or install the wiring harness under the guidance of professionals.
Product Features

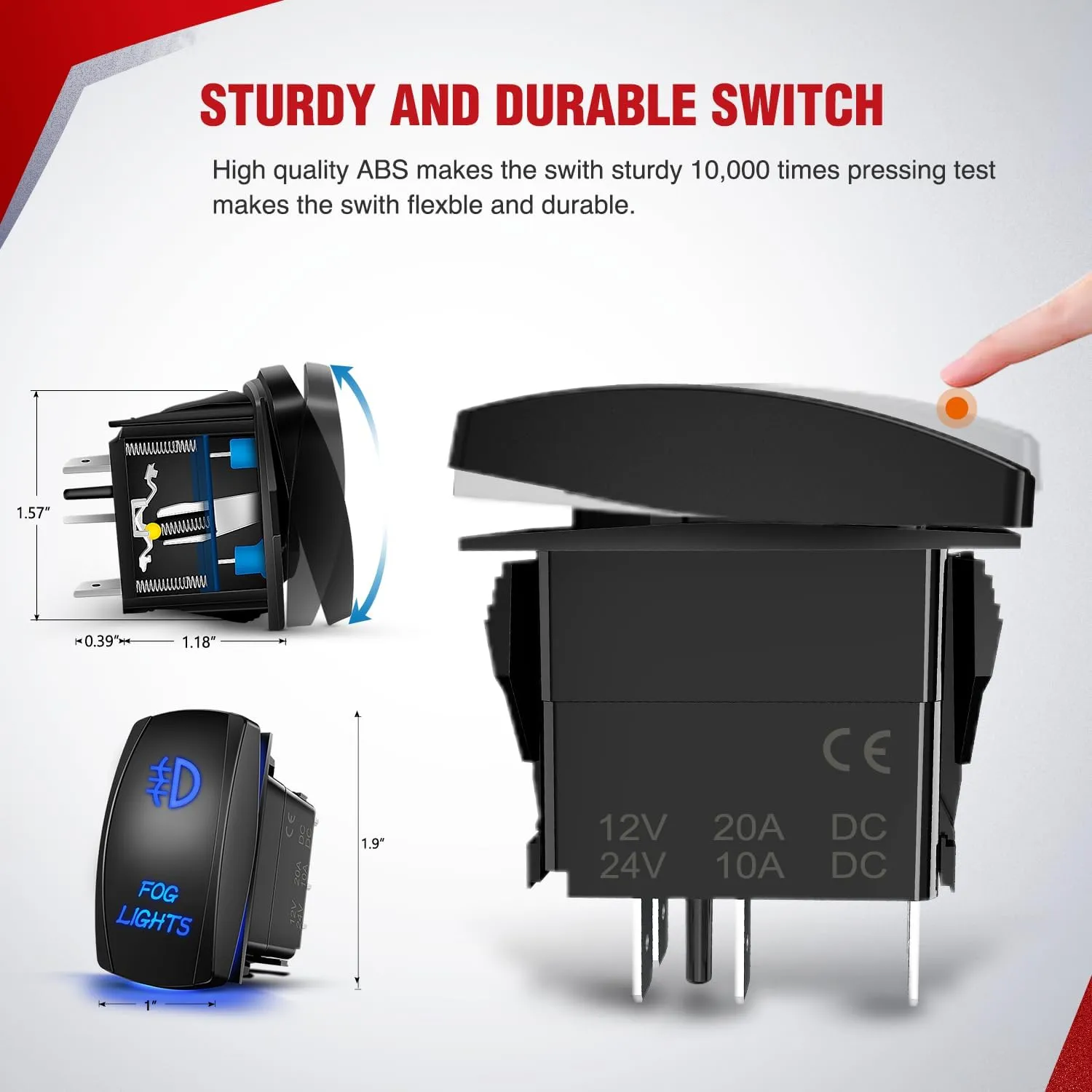

Durable In Use
The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use.

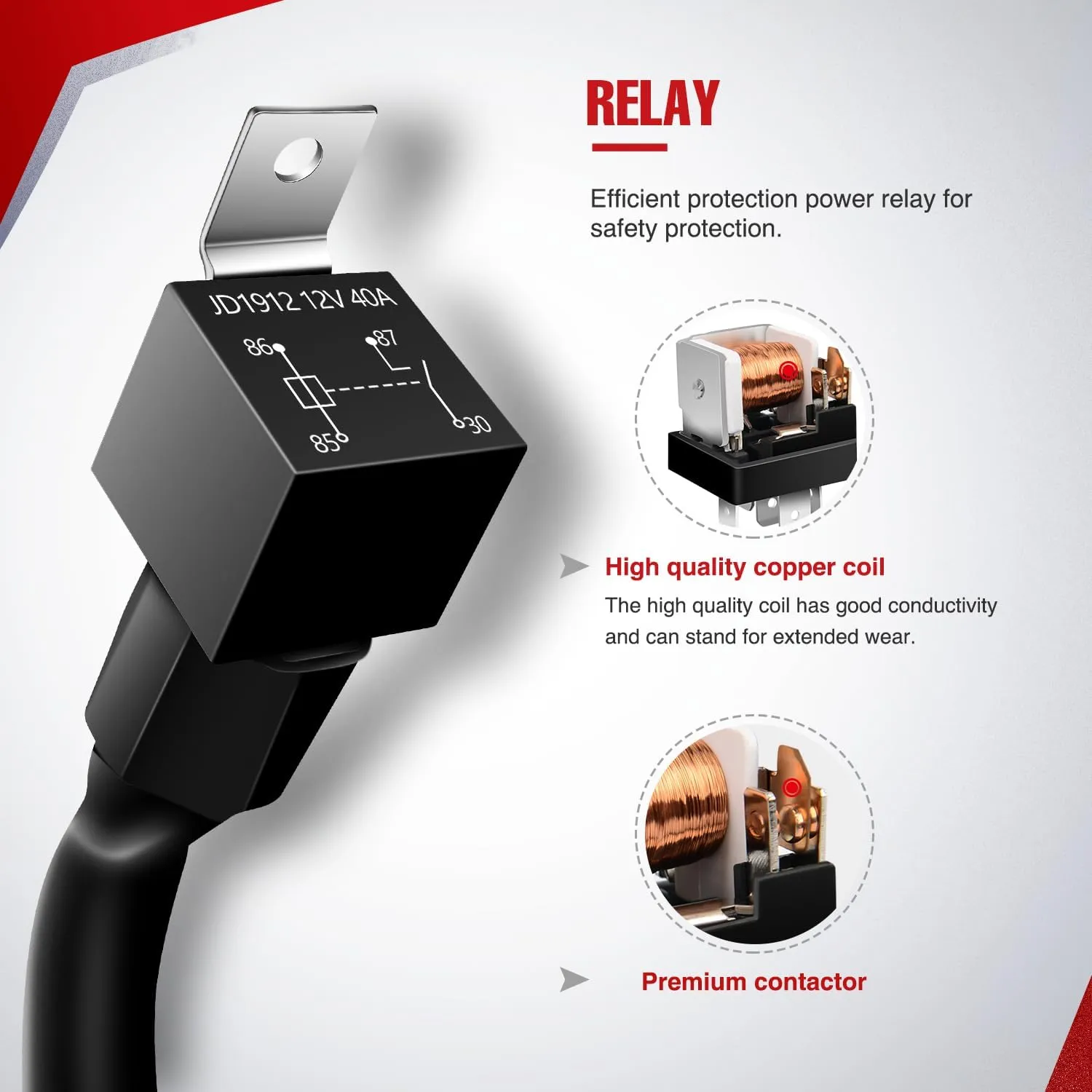

Automotive Relay
The relay is high quality made with well conductive pins. It effectively protects the circuit and the lighting system.

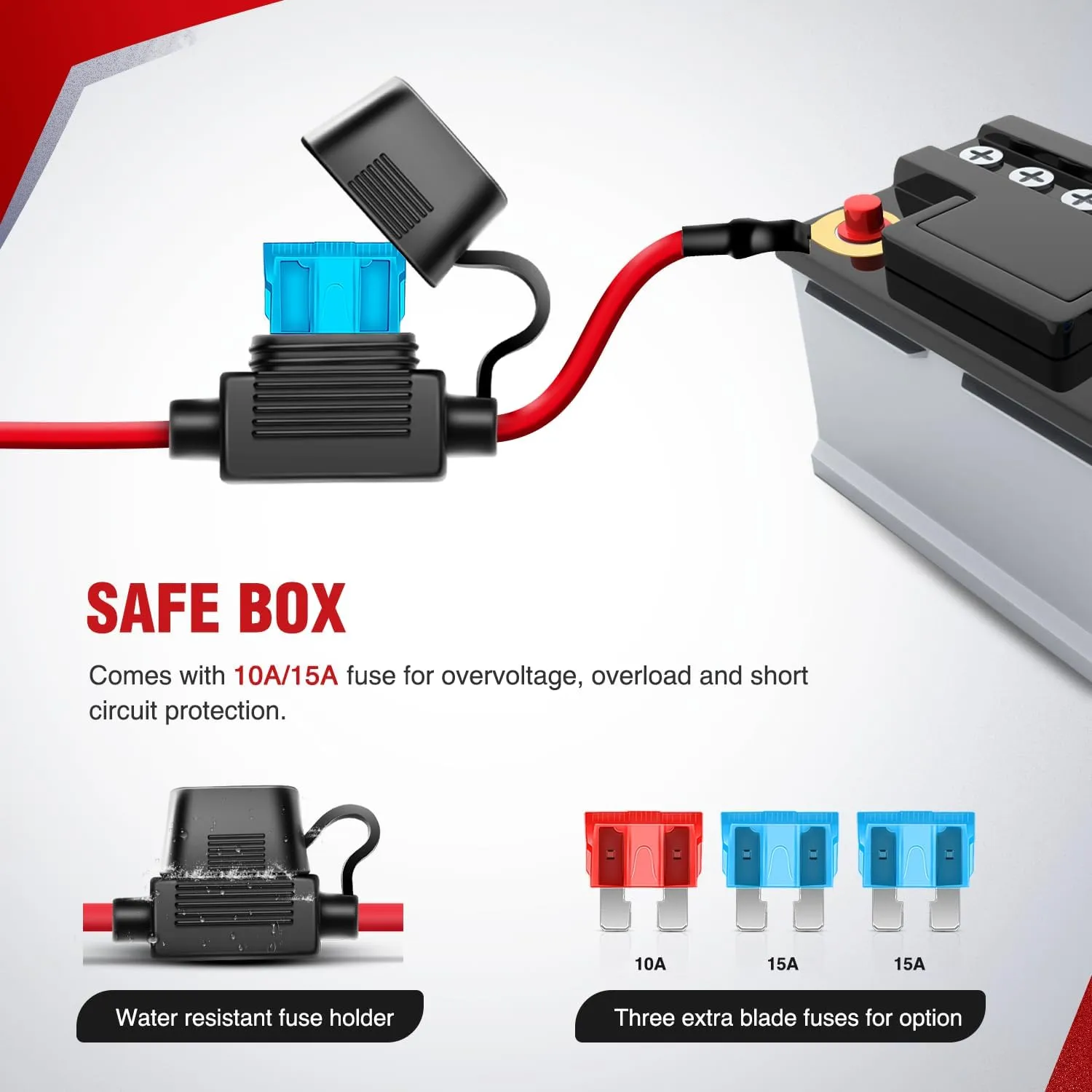

Inline Fuse with Fuse Holder
Inline Fuse against over-current and short circuit. Specially designed cap, efficiently prevent water and dust from entering.

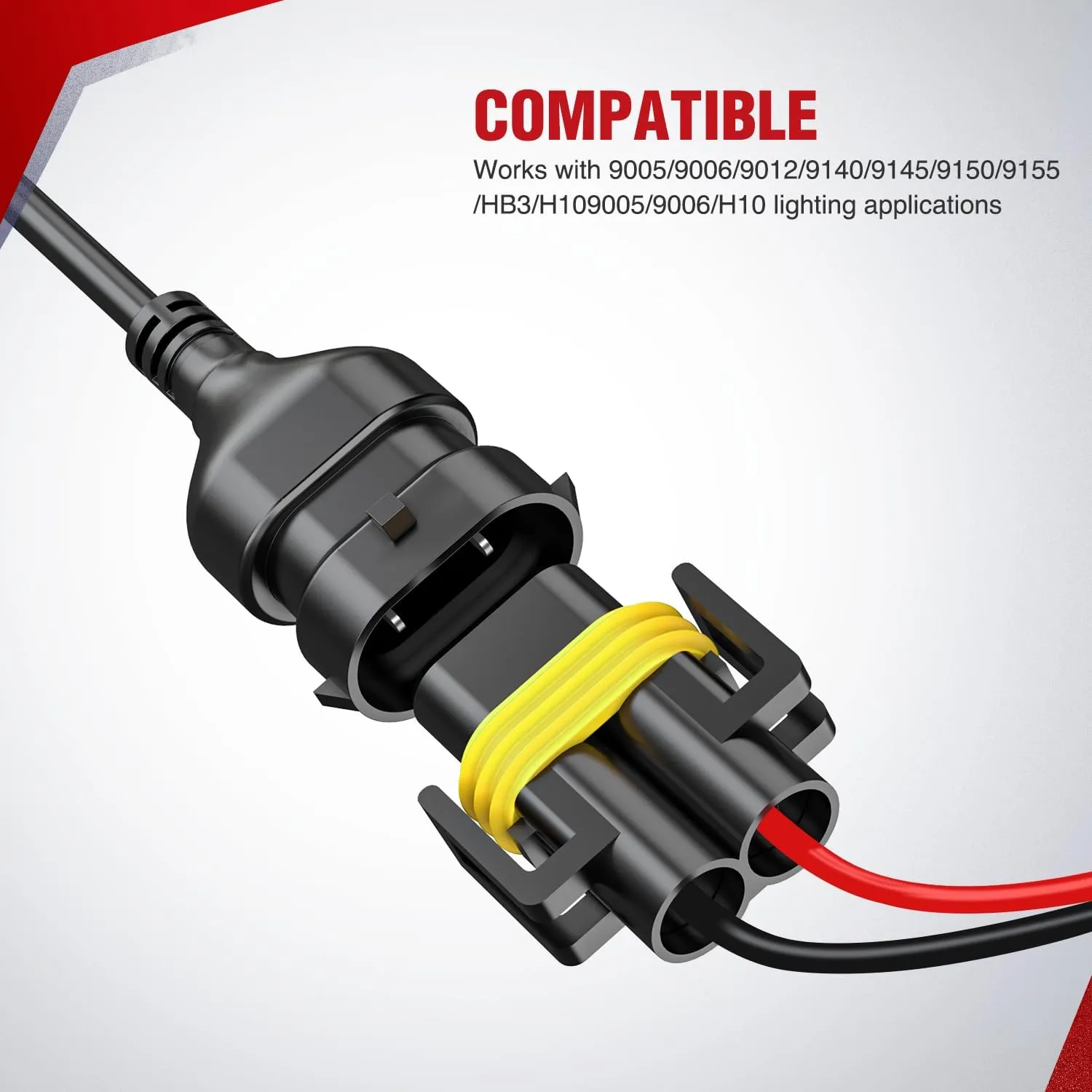

Plug and Play
9005 9006 9012 9140 9145 9150 9155 HB3 H10 Connector,Plug and play, easy to connect.

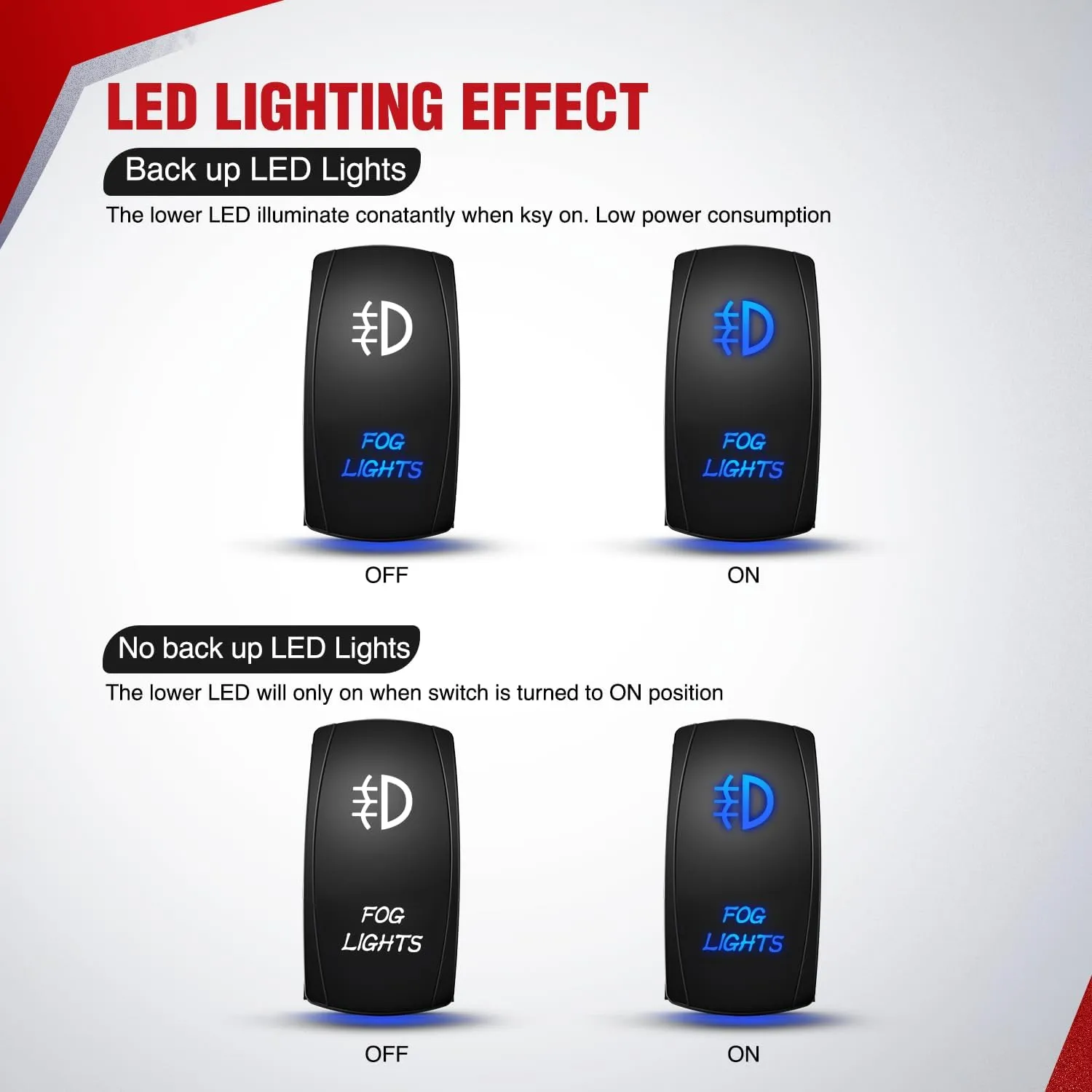

LED Lighting Effect
Backup Lights
The lower LED illuminates constantly even when the switch is OFF, easy to find in the dark.
No Backup Lights
The lower LED will illuminate only when the switch is turned to ON position.
